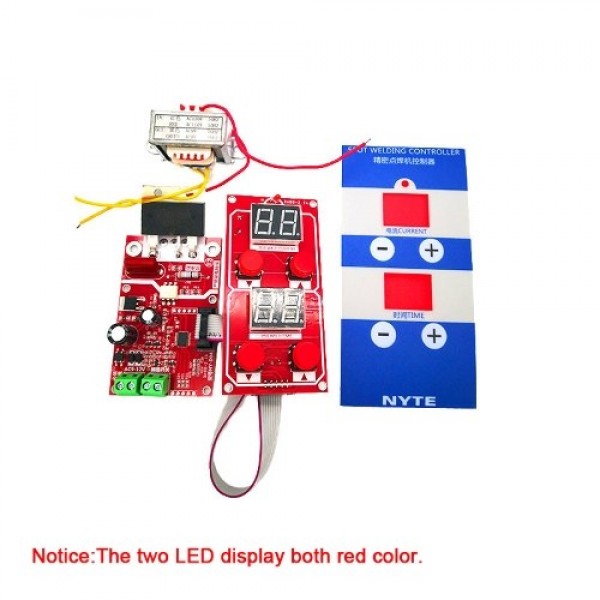

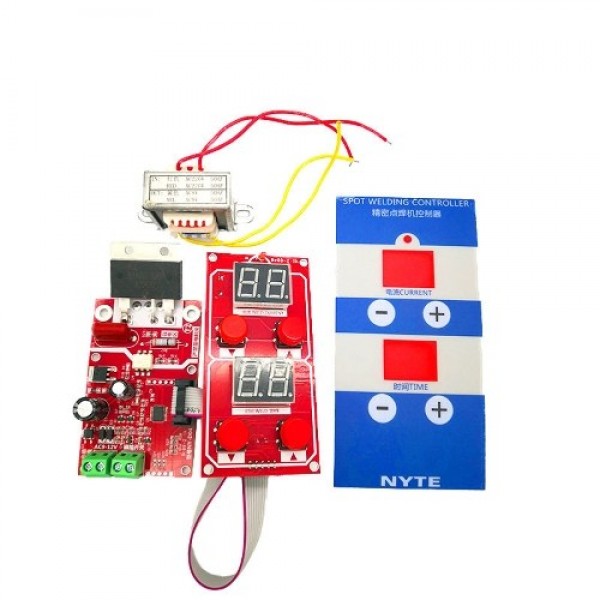

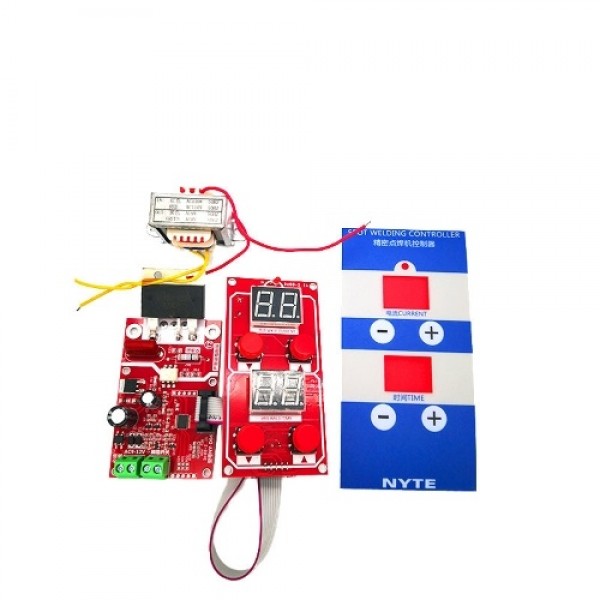

NY-D04 Dual Displays Spot Welding Machine Transformer Controller Control Panel Board Time Current Adjustable 100A/40A Optional

This control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding. Compatible with 50Hz and 60Hz power supplies, the controller automatically judges. Current regulationrange 30%-99%, time controlrange 1-99 cycles (1 cycle = 20ms). You can have a try.

Features:

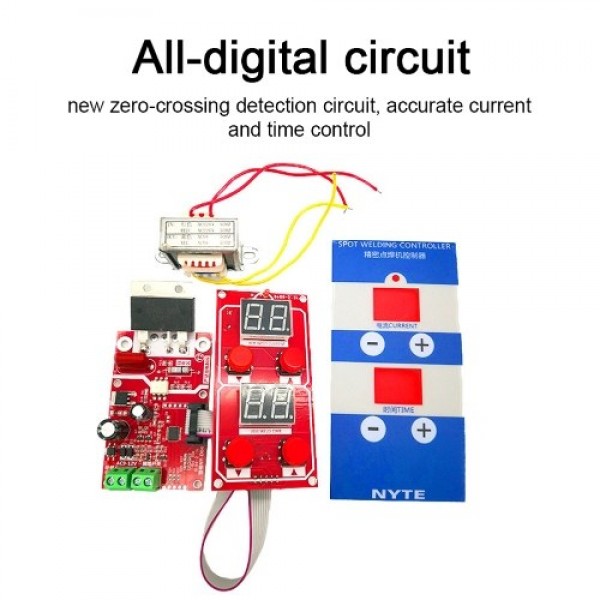

All-digital circuit, new zero-crossing detection circuit, accurate current and time control.
Compatible with 50Hz and 60Hz power supplies, the controller automatically judges.
Current regulationrange 30%-99%, time controlrange 1-99 cycles (1 cycle = 20ms).
2pcs 0.56inch high brightness digital tube display.
Press the button to adjust the parameters, the operation is more convenient.
Display panel contains status light and buzzer, instructions are more intuitive.

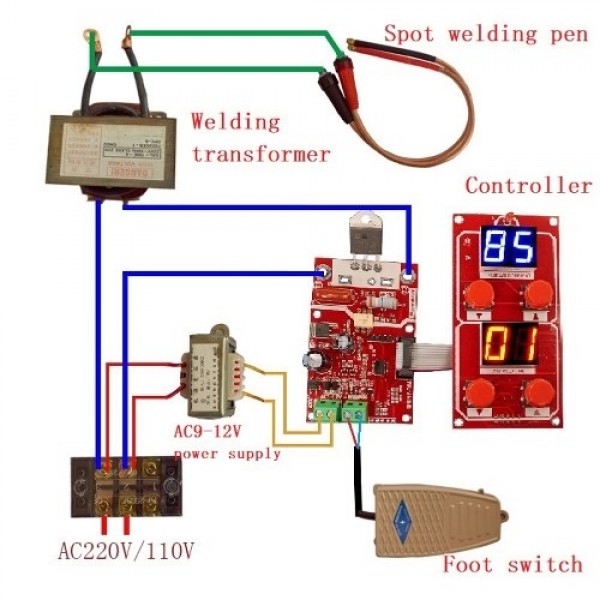

Easy to install, convenient for customers to install and produce spot welders.
Multiple strands of high temperature silicone wire with fine torsional resistance ability, fine conductivity and reliability, with a strong overload bearing capacity.
Comes with a quality foot pedal, wear resistant and can provide long service time.

Specifications:
Name: Spot Welding Machine Controller
Type: 40A, 100A (optional)
Voltage: 110V/220V optional
Item weight:
40A: 71g / 2.50ounce
100A: 81g / 2.86ounce
Package size: 175 * 95 * 115mm / 6.89 * 3.74 * 4.53in
Package weight: 430g / 0.95lb

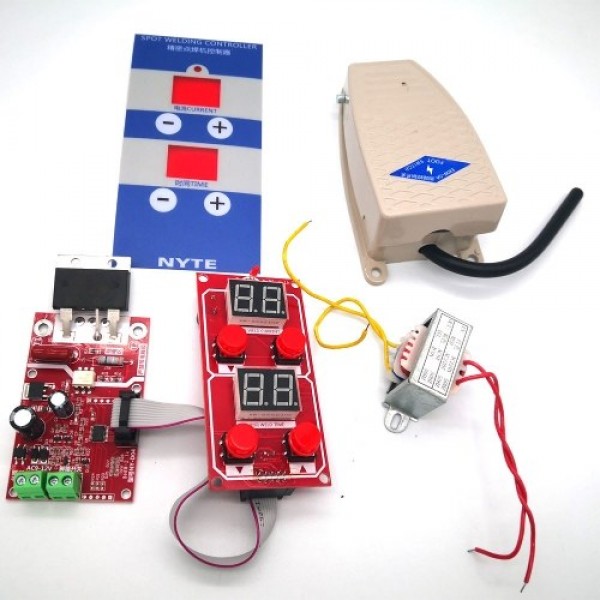

Packing List:
1 * NY-D04 Spot Welding Machine Controller
1 * Pair of Spot Wedling Pen
1 * Welding Transformer
1 * Foot Pedal
1 * Power Supplys
