YH800-3A Portable Linear Encoder Multi-function Digital Readout Optical Position Measuring Instrument

This portable linear encoder is an indispensable tool for you to use with your benchs lathe and small milling machine. This tool adopt a 3.5inch LCD display screen for you to read the data more clearly. This tool has multi-functions such as metric and imperial conversion, power-off memory, radius and diameter conversion. If you are interested in this product, come and have a try!

Features:

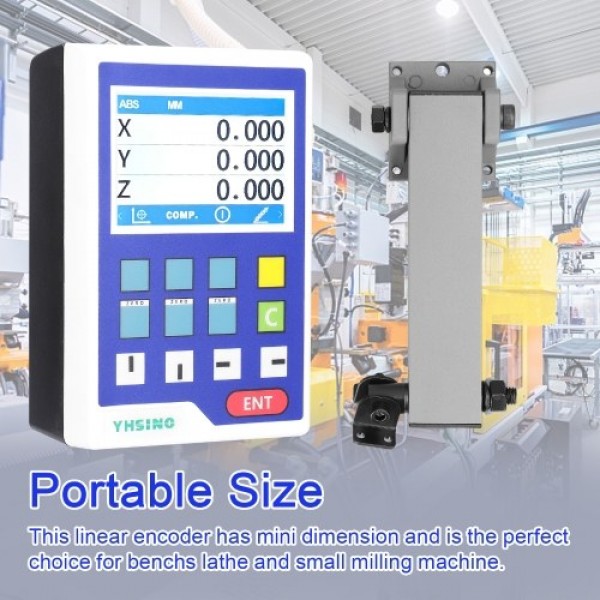

Portable Size: This linear encoder has mini dimension and is the perfect choice for benchs lathe and small milling machine.
Small but not Simple: Adopting 32-bit chips with 64M running memory. Quick speed for calculation, and strong ability of anti-interference.

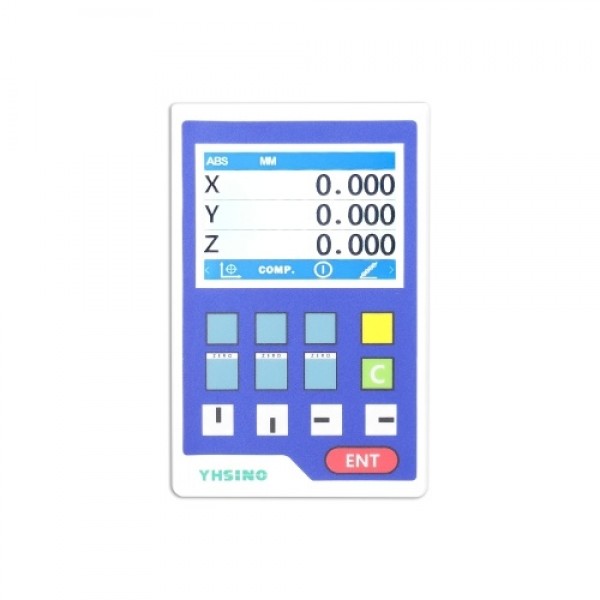

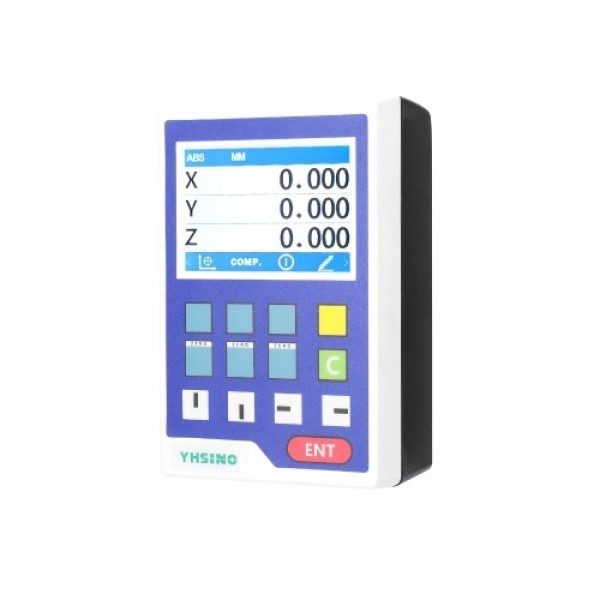

Large Display Screen: Adopting 3.5inch true color LCD screen, displaying with full information of setting and function. No composite keys, user-friendly.

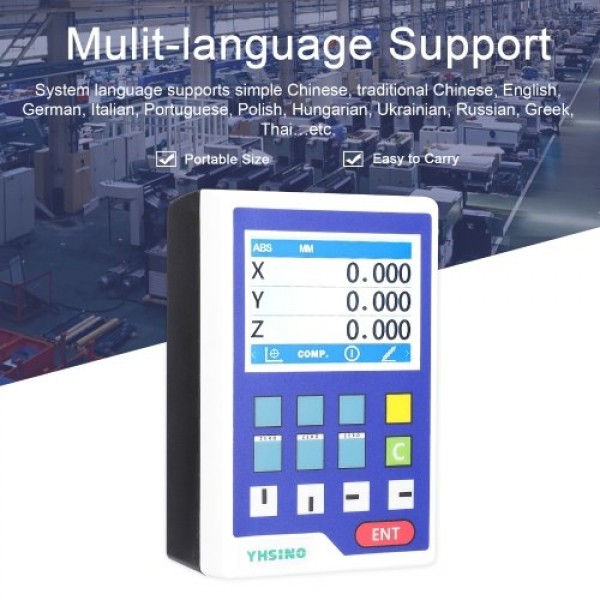

Mulit-language Support: System language supports simple Chinese, traditional Chinese, English, German, Italian, Portuguese, Polish, Hungarian, Ukrainian, Russian, Greek, Thai…etc.
Powerful Functions: Besides the fundamental functions, system also supports the PCD, PLD, Radius and diameter conversion, Vectoring machining and so on. This makes the DRO could meet most applications on various machines.

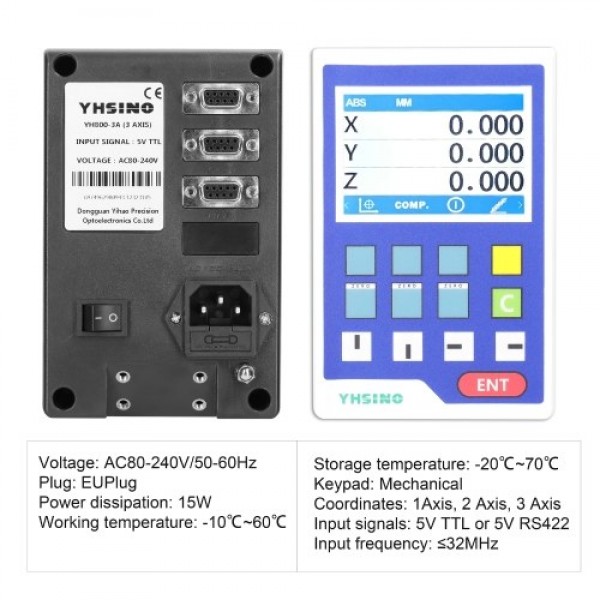

Specifications:
Material: ABS
Voltage: AC80-240V/50-60Hz
Plug: EUPlug
Power dissipation: 15W
Working temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Keypad: Mechanical
Coordinates: 1Axis, 2 Axis, 3 Axis
Input signals: 5V TTL or 5V RS422
Input frequency: ≤32MHz
Resolution:
0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 2.5μm, 5μm,10μm, 20μm, 25μm, 50μm, 100μm,(Linear Encoder)
＜1000000ppr(Rotary Encoder)
Package size: 300 * 235 * 105mm / 11.8 * 9.3 * 4.1in
Package weight: 1500g / 3.3lb

Packing list:
1 * Linear Encoder with Plug
