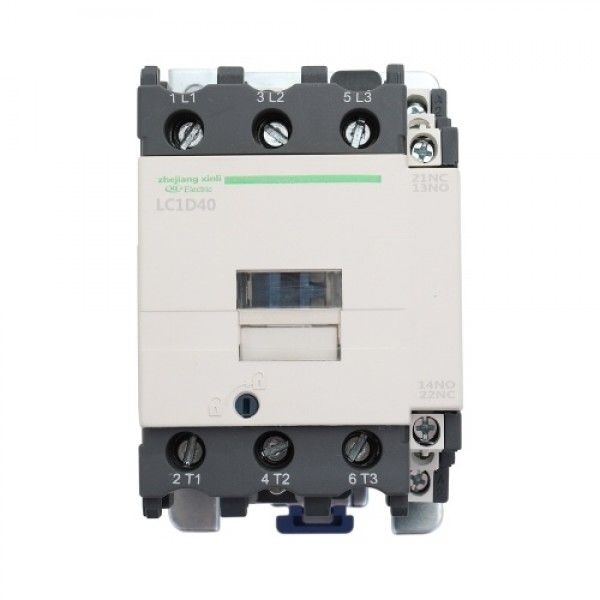

AC Connector Electric 220V 50/60Hz Poles Coil AC Modular Contactor LC1-D High Sensitivity Strong Conductivity
LC1-D series AC Contactor, for making, breaking, frequently starting, machine interlocking device, etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.
Features:
An industrial electric appliance that uses a coil to flow through the current to generate a magnetic field that closes the contact to achieve the control load of the electrical installation.
This AC contactor is suitable for AC 50Hz or 60Hz, AC voltage 220V, for long-distance connection and segmented circuit and frequent starting.
High sensitivity and suitable carrying capacity.
Stable connection contact is of strong conductivity.
Usually used in power, distribution and power applications.
Specifications:
Type: 40A, 50A, 65A, 80A, 95A (optional)
Voltage: 220V
Coil Frequency: 50/60 (Hz)

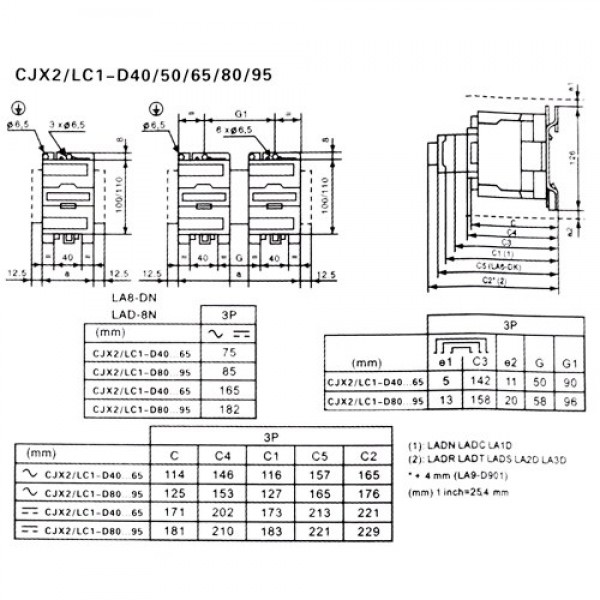

Item Size: 130 * 115 * 75mm / 5.1 * 4.5 * 3.0in
Package Size: 140 * 135 * 100mm / 5.5 * 5.3 * 3.9in
Item Weight: 1166g / 2.6lb
Package Weight: 1260g / 2.8lb
Notes:
Please allow 1-30mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Package List:
1 * AC Contactor
