Intelligent Single-phase Wifi Electricity Meter LCD Display 35mm DIN Rail Installation Smartphone Tuya APP Remotely Control Comp

The electric energy meter adopts SOC single-chip processing system design and SMT process manufacturing, has the characteristics of simple circuit, high reliability and high measurement accuracy. Multi-function, which can be used to measure altering current voltage, current, active power, power factor, frequency and electric energy. The electric energy meter measures single-phase two-wire active energy, and is suitable for secondary circuit users who implement flat rate tariff prices or inside single-phase electrical equipment with small space, as well as photovoltaic bidirectional metering, recharging pile metering, and support remote meter reading.

Features:

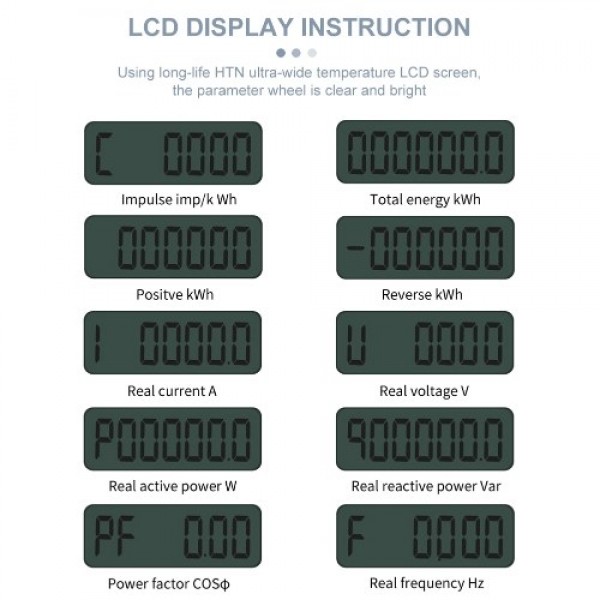

LCD digital display, standard 6-digit integer + 2-digit decimal (999999.99kWh).
Real-time current, voltage, active power, reactive power, power factor, frequency measurement display.
Bidirectional metering of active energy, which can display total electricity, positive power and negative power.
It has WIFI communication function, fine interference and attack resistance performance, wide operating temperature ranges, and can work stably and reliably for a long time.
WIFI software can set multiple groups of timing control and single-group of delay control.
WIFI communication comes with mobilephone software to realize remote viewing and opening&closing control, supports Tuya APP, and Tuya SAAS version can also be customized.
Perfectly voice controlled through connected with intelligent sound speaker, compatible with Amazon Alexa and Google Home.
With ultrawide voltage working ranges, passive pulse output.
After power failure, all stored data will not be lost.
The width of the meter is only 36mm, 35mm standard rail installation, the appearance is similar to the 2P circuit breaker.
Wide applications, suitable for chemical industry, power station, automation equipment, DOS system, electromechanical device and etc..

Specifications:

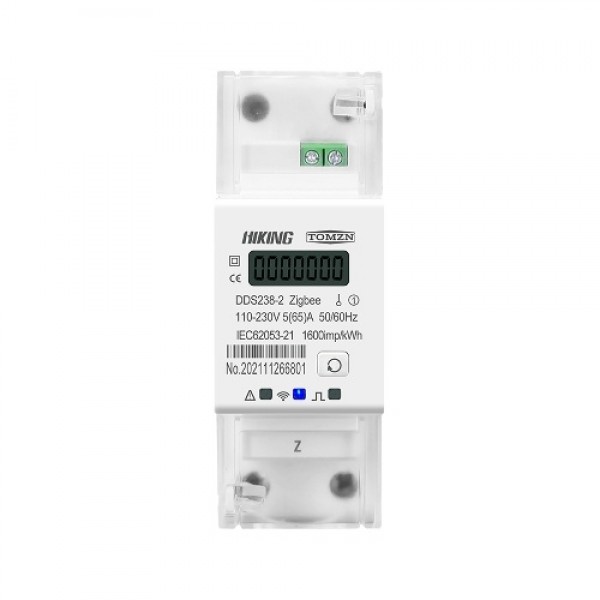

Name: Electricity Meter
Model: DDS238-2
Material: PC
Item size: 100 * 36 * 65mm / 3.94 * 1.42 * 2.56in
Package size: 130 * 80 * 50mm / 5.12 * 3.15 * 1.97in
Package weight: 300g / 10.58ounce

Packing List:
1 * Electricity Meter
