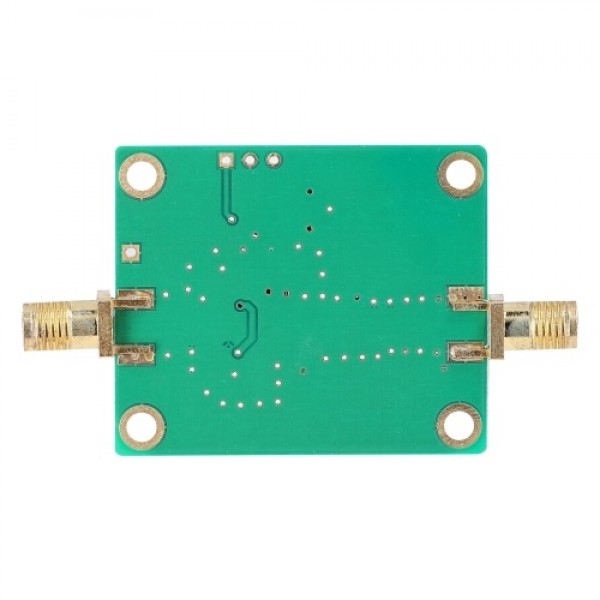

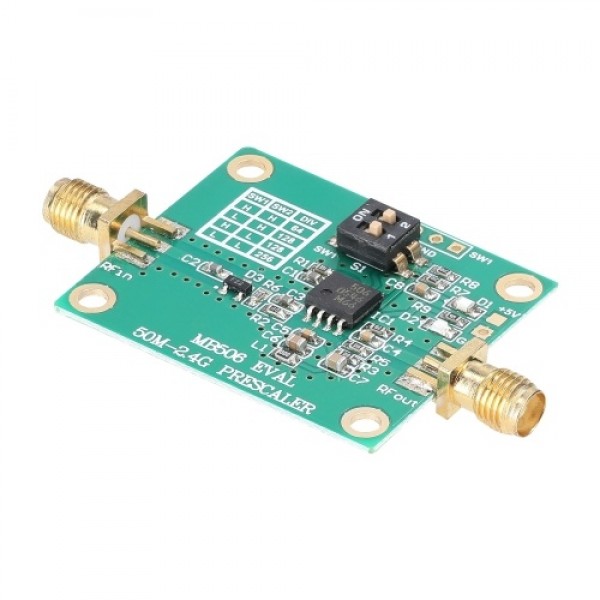

MB506 Module 50MHz-2.4GHz High Frequency Prescaler 64 /128/256 Divider for DBS CATV UHF
The frequency of MB506 is up to 2.4GHz, it's a high frequency prescaler. It divides the input frequency by the modulus of 128 or 256. And the output level is 1.6V at the peak-to-peak value at the ECL level. Use a frequency synthesizer to form a phase lock loop (PLL).
Features:
The frequency of MB506 is up to 2.4GHz, it's a high frequency prescaler.
The impedance change is lower, which can get better classification performance and improve the dynamic range.
And the output level is 1.6V at the peak-to-peak value at the ECL level.
Use a frequency synthesizer to form a phase lock loop (PLL).
This module support 64, 128 and 256 output frequency dividing coefficients.
Specifications:
Name: MB506 Module
Material: printed circuit board
Model: MB506
Frequency: 50MHz-2.4GHz
Power supplys: DC4.5V-DC5.5V
Channel: 1 channel
Current: 18mA
Input impedance: 50ohm
Input frequency: 50MHz-2.4GHz
Working frequency: -40℃ to 85℃
Input output interface: SMA
Item size: 70 * 41 * 15mm / 2.76 * 1.61 * 0.59in
Item weight: 10g / 0.35ounce
Package size: 110 * 70 * 10mm / 4.33 * 2.76 * 0.39in
Package weight: 11g / 0.39ounce
Packing List:
1 * MB506 Module
