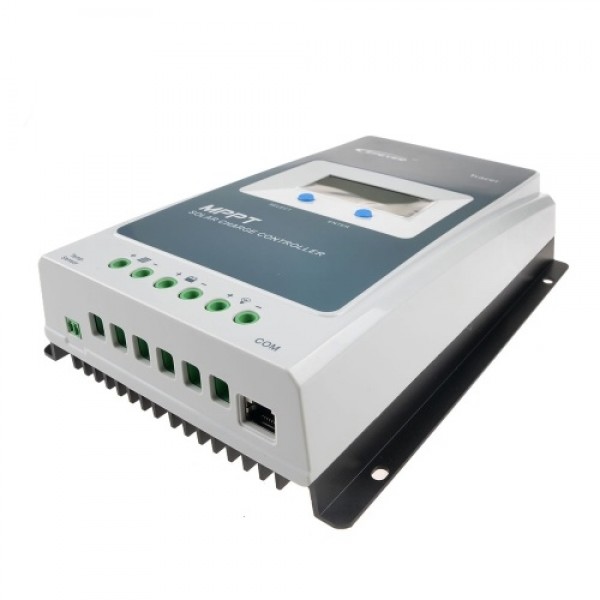

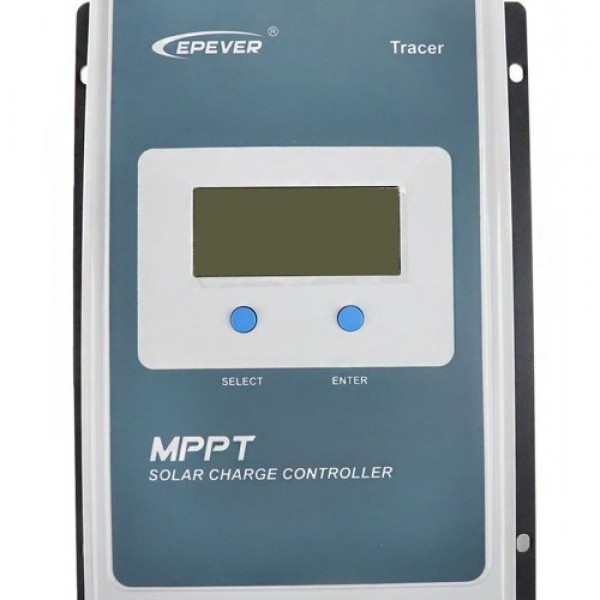

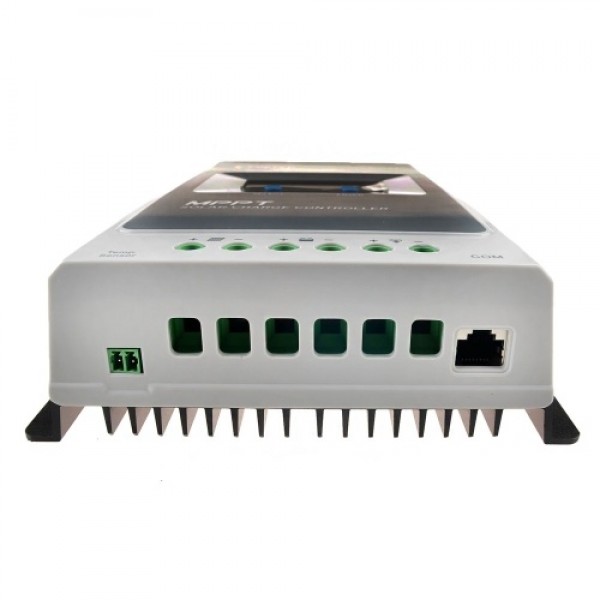

Epever Tracer-AN Series MPPT Solar Charge Controller Epever LCD Display Charger Controller Solar Regulator 12/24V DC (Tracer 220

The Tracer AN series are based on common negative design and advanced MPPT control algorithm, with LCD display running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducing charging power function automatically improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.

Features:
Advanced MPPT technology, with efficiency no less than 99.5%.
Ultra-fast tracking speed and guaranteed tracking efficiency.
Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time.
Wide MPPT operating voltage range.
Fine quality components, perfecting system performance, with maximum conversion efficiency of 98%.
Charging power and current limitation function.
Wide PV array maximum power point operating voltage range.
Accurate recognition and tracking of multiple-peaks maximum power point.
Compatible with lead-acid and lithium-ion batteries.
Battery temperature compensation function.
Real-time energy statistics function.
Overheating power reduction function.
Multiple load work modes.
The communication port adopts professional protection chip, which can provide 5V DC power supply, and has over-current and short-circuit protection.
With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
Monitor and set the parameters via mobile phone APP or PC software.
Full-load operation without any drop in capacity within the range of working environment temperature.
Extensive electronic protection.
With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, including overcharging and over discharging protection to minimize damages to components of the system caused by incorrect installation or system failure at the utmost.
Effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.
This modular solar controller can be widely used for different applications, e.g., communication base stations, household systems, and field monitoring, etc.

Specifications:
Material: ABS
Model: Tracer 1206AN, Tracer 2206AN, Tracer 1210AN, Tracer 2210AN, Tracer 3210AN, Tracer 4210AN (optional)
System nominal voltage: 12/24V DC Auto
Rated charge current:
Tracer 1206AN: 10A
Tracer 2206AN: 20A
Tracer 1210AN: 10A
Tracer 2210AN: 20A
Tracer 3210AN: 30A
Tracer 4210AN: 40A
Rated discharge current:
Tracer 1206AN: 10A
Tracer 2206AN: 20A
Tracer 1210AN: 10A
Tracer 2210AN: 20A
Tracer 3210AN: 30A
Tracer 4210AN: 40A
Battery voltage range: 8~32V
Max. PV open circuit voltage:
Tracer 1206AN/Tracer 2206AN: 60V, 46V (60V is at minimum operating environment temperature, 46V is at 25℃ environment temperature)
Tracer 1210AN/Tracer 2210AN/Tracer 3210AN/Tracer 4210AN: 100V, 92V (100V is at minimum operating environment temperature, 92V is at 25℃ environment temperature)
MPPT voltage range:
Tracer 1206AN/Tracer 2206AN: (battery voltage +2V)~36V
Tracer 1210AN/Tracer 2210AN/Tracer 3210AN/Tracer 4210AN: (battery voltage +2V)~72V
Max. PV input power:
Tracer 1206AN: 130W/12V 260W/24V
Tracer 2206AN: 260W/12V 520W/24V
Tracer 1210AN: 130W/12V 260W/24V
Tracer 2210AN: 260W/12V 520W/24V
Tracer 3210AN: 390W/12V 780W/24V
Tracer 4210AN: 520W/12V 1040W/24V
Self-consumption: ≤12mA
Discharge circuit voltage drop: ≤0.23V
Temperature compensate coefficient: -3mV/℃/2V (default)
Grounding: common negative
RS485 interface: 5V DC/100mA
LCD backlight time: 60s (default)
Working environment temperature: -25℃~+50℃ (100% input and output)
Storage temperature range: -20℃~+70℃
Relative humidity: ≤95%, N.C.
Enclosure: IP30
Item size:
Tracer 1206AN/Tracer 1210AN: 172 * 139 * 44mm / 6.8 * 5.5 * 1.7in
Tracer 2206AN/Tracer 2210AN: 220 * 154 * 52mm / 8.7 * 6.1 * 2.0in
Tracer 3210AN: 228 * 164 * 55mm / 9.0 * 6.5 * 2.2in
Tracer 4210AN: 252 * 180 * 63mm / 9.9 * 7.1 * 2.5in
Item weight:
Tracer 1206AN/Tracer 1210AN: 570g / 1.3lb
Tracer 2206AN/Tracer 2210AN: 940g / 2.1lb
Tracer 3210AN: 1260g / 2.8lb
Tracer 4210AN: 1650g / 3.6lb
Package size:
Tracer 1206AN: 200 * 155 * 70mm / 7.9 * 6.1 * 2.8in
Tracer 2206AN: 250 * 177 * 53mm / 9.8 * 7.0 * 2.1in
Tracer 1210AN: 200 * 155 * 70mm / 7.9 * 6.1 * 2.8in
Tracer 2210AN: 245 * 170 * 70mm / 9.6 * 6.7 * 2.8in
Tracer 3210AN: 255 * 180 * 75mm / 10.0 * 7.1 * 3.0in
Tracer 4210AN: 280 * 200 * 80mm / 11.0 * 7.9 * 3.1in
Package weight:
Tracer 1206AN: 722g / 1.6lb
Tracer 2206AN: 1104g / 2.4lb
Tracer 1210AN: 730g / 1.6lb
Tracer 2210AN: 1113g / 2.5lb
Tracer 3210AN: 1451g / 3.2lb
Tracer 4210AN: 1854g / 4.1lb

Package list:
1 * MPPT Solar Charge Controller
1 * User Manual
