MMS80 Home UHF Modulator Optional PAL/NTSC Multiple Modulation System CATV UHF Signal Amplifier 100~240V EU Plug Compact Alumini

Features:
Application: It is suitable for satellite receivers, video cameras, video game consoles, CCD cameras, VCR, DVD and more.

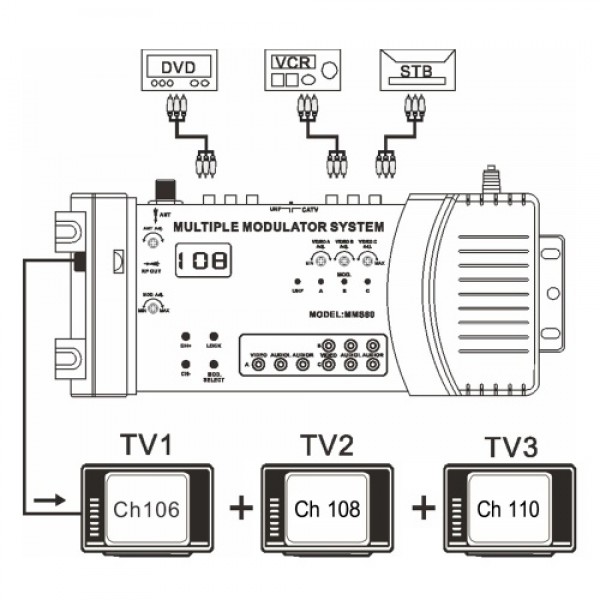

3 Output Channel: Output channel optional, can output three different television channels at the same time.
Memory Function: The fast channel selected wil be stored in the memory, even when power goes out.
Bill Saving: With cost effectiveness for your own local CATV system.
Premium Quality: Made of high quality aluminium alloy material, sturdy, durable and long service life.

Specification:
Name: Multiple Modulator System
Model: MMS80

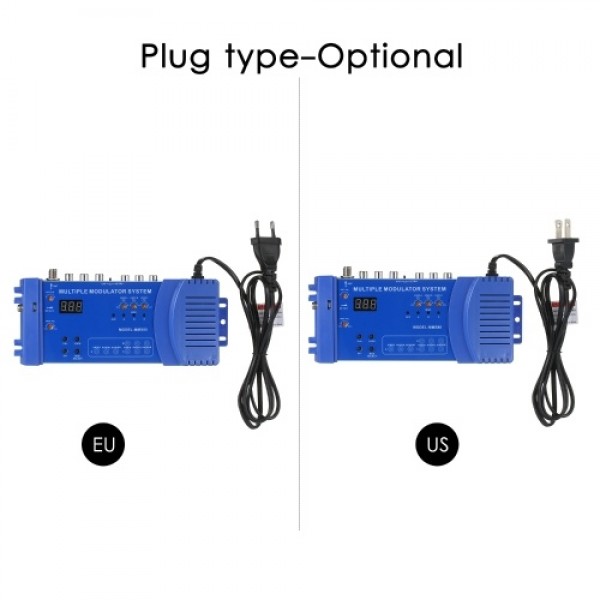

Plug: EU / US (optional)
Material: Aluminum Alloy
Color: Blue
Input Channel: A Input / B Input / C Input
Channel Range:  UHF：TV+CATV (A Input)
                           UHF：TV+CATV (B Input)
                           UHF：TV+CATV (C Input)
Operating Frequency: 470MHz~868MHz
TV Standard: PAL/NTSC （A B C settings are the same）
A/V Connector: RCA female
RF Input/RF Output: F-female
Output Level: 85±5dBuV
RF Output Channel: A Input channel + B Input channel + C Input channel（Channel cannot be the same, at least more than one channel apart）
Sound System: M=4.5MHz、B/G=5.5MHz、I=6.0MHz、D/K=6.5MHz（A B C settings are the same）
Power Consumption: 400mA 5V
Max. AC Input: 100~240V
Working Temperature: 0℃~+ 40℃

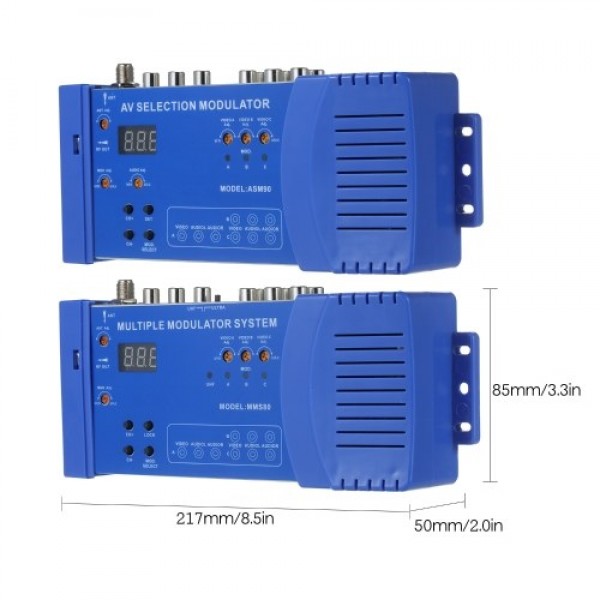

Item Size: 217*85*50mm/8.5*3.3*2.0in
Item Weight:  410g/14.5oz

Packing List:
1 * Multiple Modulator System
1 * User Manual
